“Rev II” 5-String Multi-scale headless

KD REV II 5-String Multi-scale headless bass was custom made for Robert Atanasov. It was for Robert that I made one of the first REV II 4-string basses years ago. This time he wanted something different and more challenging in design. Our emphasis was on the construction of the neck-trough, which is formed with Bulgarian wood – sought after not only for its sound quality, but also for its impressive appearance.

Another important element of the project was that the bass be a 5-string and that the 5th string (B) embody a deep, tight and defined sound. In order to accomplish this we went with a 34”-37” Multi-Scale. There was no hesitation, however, when it came to choosing the electronic components and the hardware because ABM Hardware, Haeussel pickups and NOLL Electronics have proven to be of superior quality time and time again.

The body of the guitar has undergone some modifications which greatly contribute to its pleasing appearance, making it somewhat different from the original – Robert and I were pleased with the result and I hope you like it too.


Technical specification:

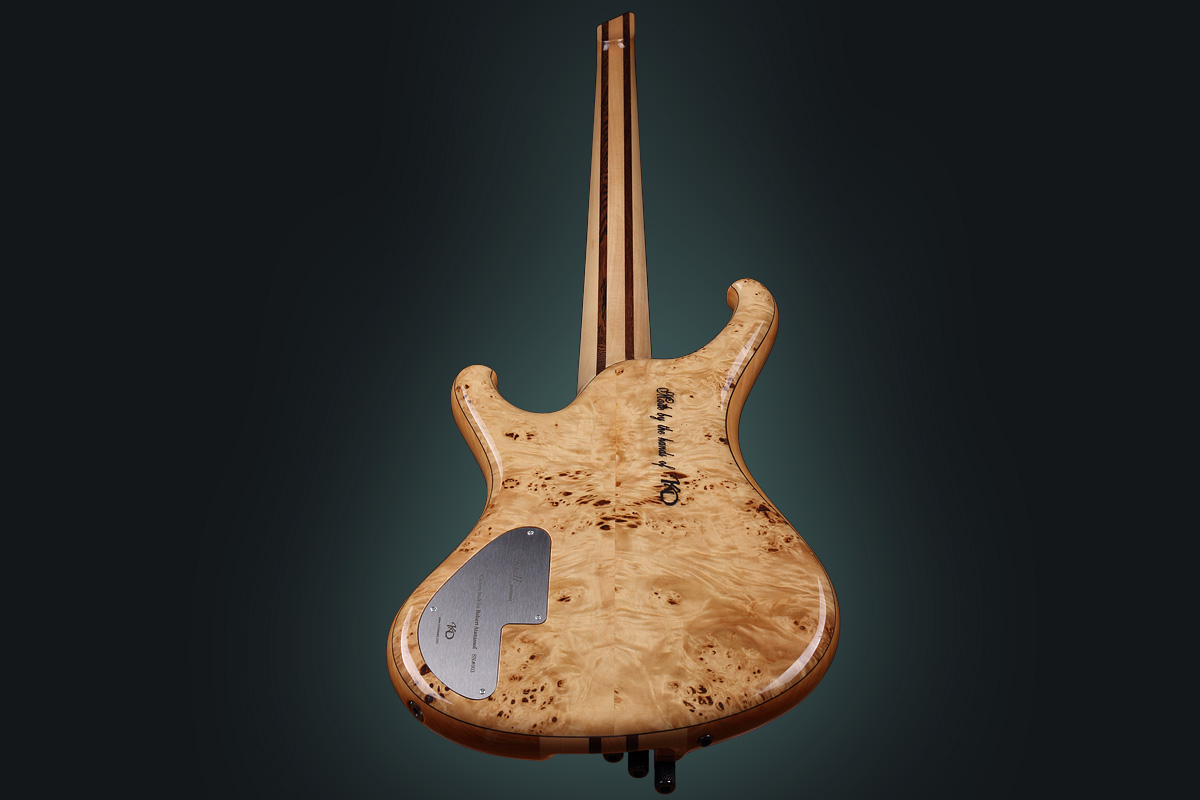

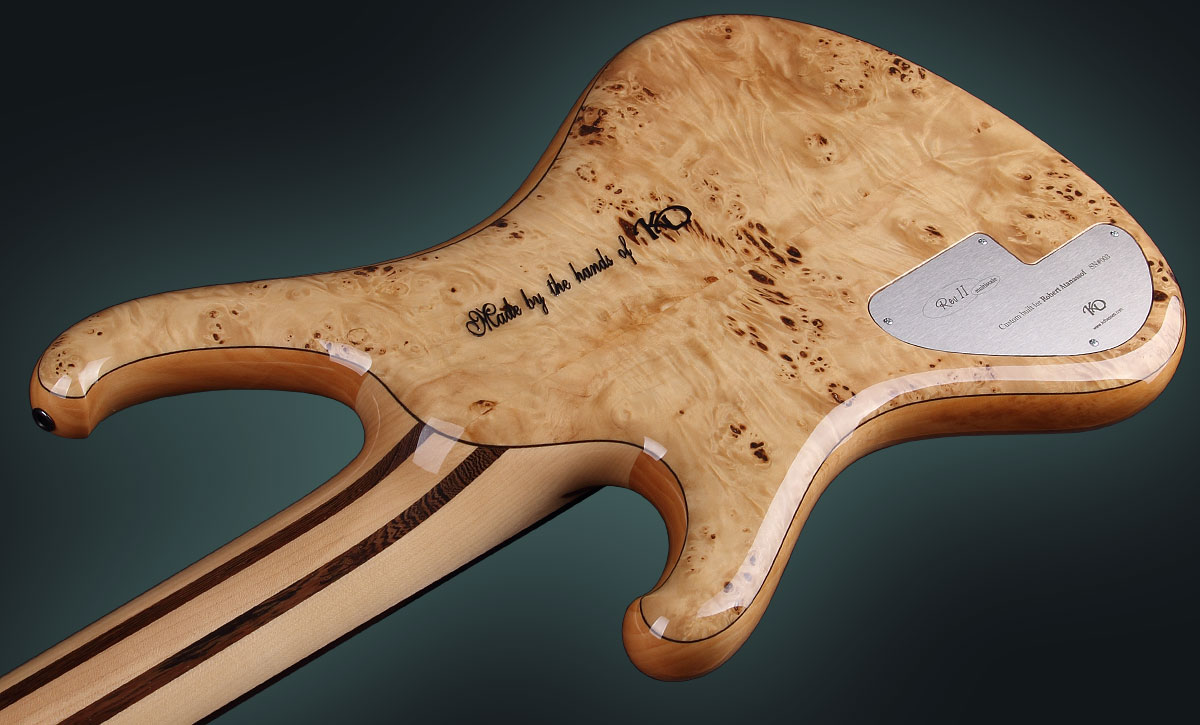

Body: Seasoned Bulgarian Alder core/center plus the phenomenal Bulgarian Olive Ash burl top. Ultra-figured Bulgarian Black Poplar back. Wenge veneer lamination.

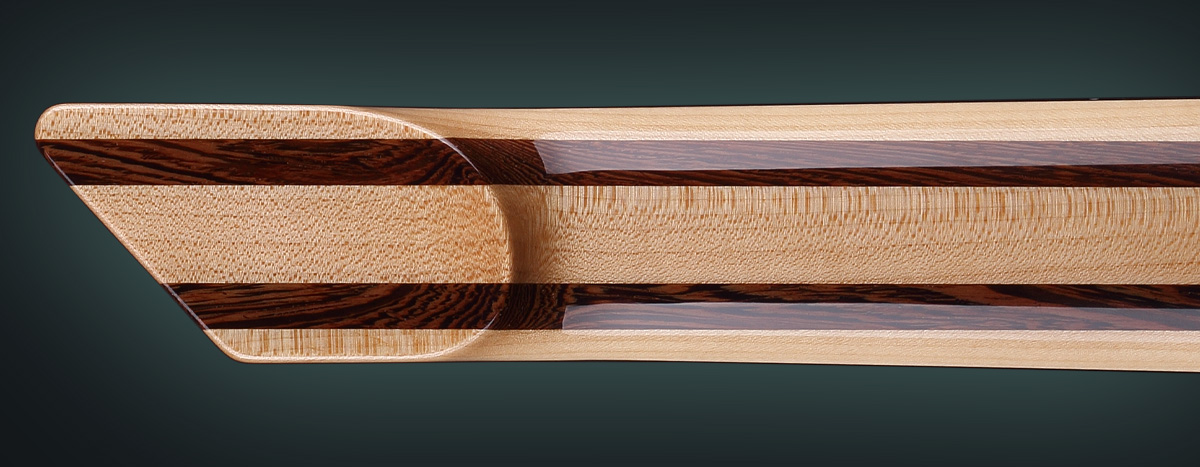

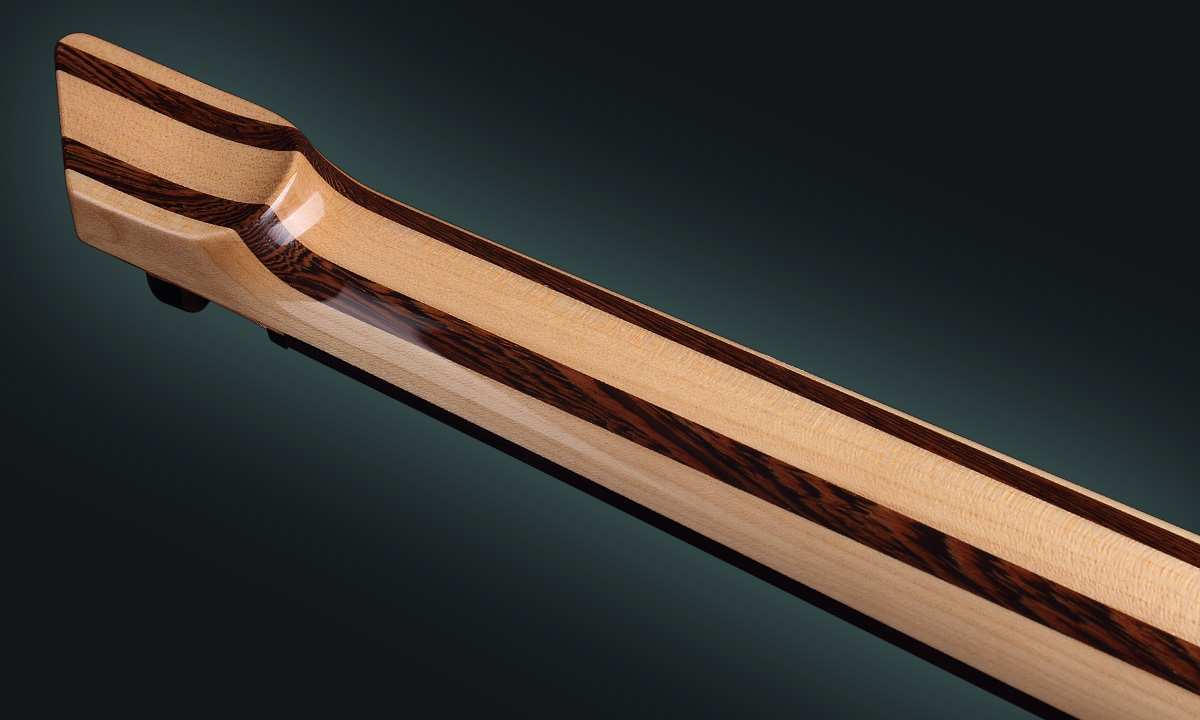

Neck: Neck-trough construction (hidden neck-through), 3-pieces plain Balkan Maple plus two stripes Wenge.

  • Multiscale 34” first string 37” fifth string
  • Side position marks 2mm white dots
  • 20″ (508mm) fingerboard radius
  • 20mm (0.787″) thickness at 1-st fret
  • 22mm (0.866″) thickness at 12-th fret
  • 45mm (1.771″) nut width
  • 24 medium Jumbo frets
  • The nut is made of Indian water Bull horn

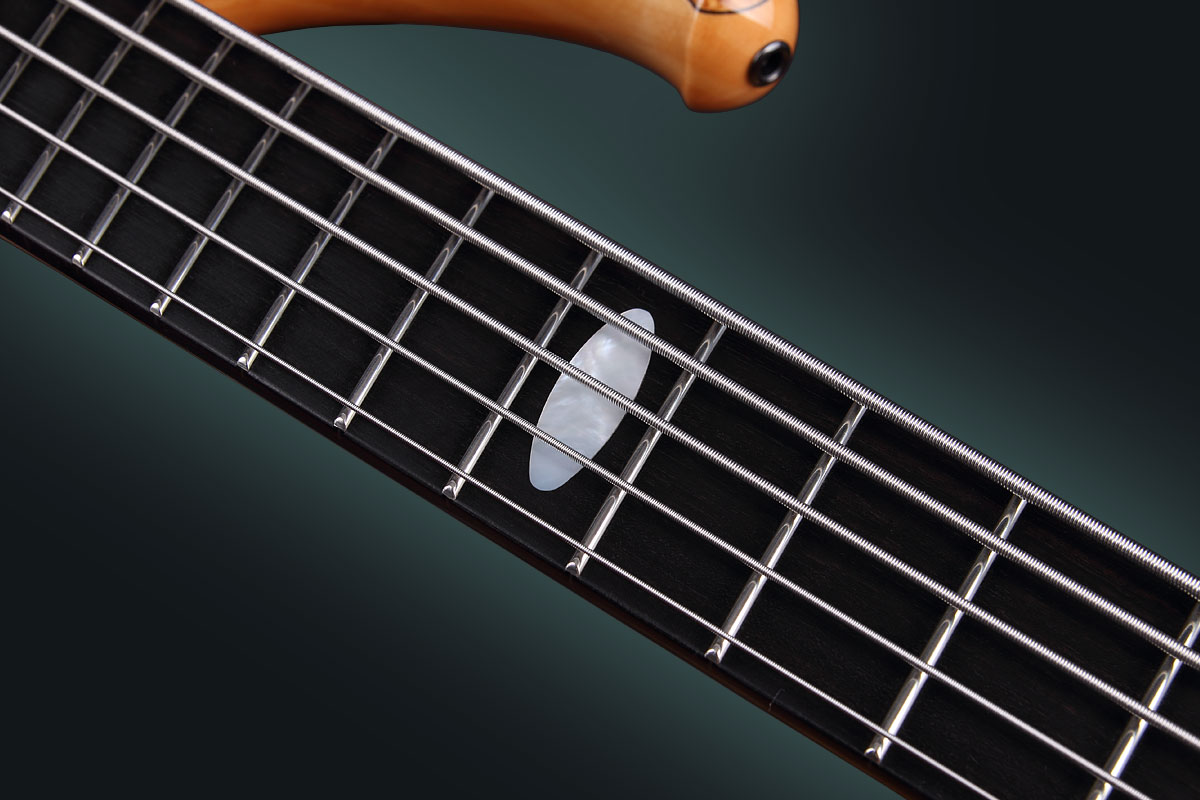

  • MOP elliptical inlay on 12-th fret

Fingerboard: Ebony
Construction: Neck-through
Tuners: ABM headless pieces
Bridge: ABM headless individual bridges, 17,5mm (0.688″) spacing

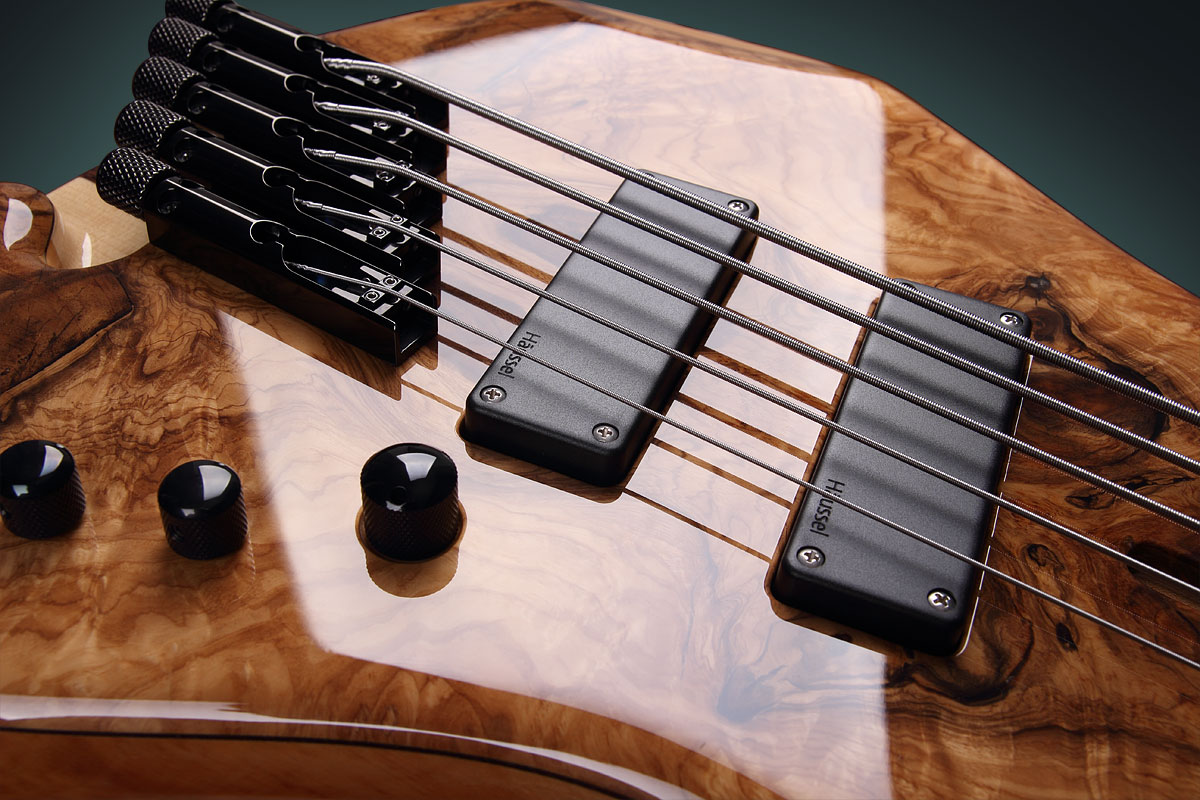

Pickups: Haeussel BassBar set (neck + bridge)
Finish: High Gloss Polyester
Strap pins: Dunlop Flush Mount
Hardware: Black
Electronics, controls:

  1. VOLUME Push/Pull, Active/Passive
  2. BLEND
  3. BASS
  4. MID
  5. TREBLE

NOLL TSM 3 onboard preamp 9V
Weight: 4,400kg (9.7lbs)

Stainless steel electronic box cover plate.

Copper shielding protects the entire electronic box and pickups.

Send me an e-mail via the Contact form to check the availability of the present Multi-scale headless bass or to get more information about placing an order!

Custom options and price are available upon request!

Click on the images to enlarge!

On our Facebook page you can see the available rare wood materials. Click KDbasses to check them out.

The bass comes with:

Gigbag or HISCOX – KD hard case;
Certificate Of Authenticity;
Set of two KD cleaning towels:
LIMITED LIFETIME  warranty


Video: “Простите неща” (The Simple Things) by Robert Atanasov

“Rev II” 5-String Multi-scale headless Sound Samples – “Spring” by Robert Atanasov
