“Rev II” 5-string Multi-Scale

KD REV II 5-String Multi Scale bass custom made for Krasimir Yanakiev – bass player for the Bulgarian band, HANGAR 42.
Krasimir contacted me to enquire about a 5-string bass that would be capable of handling a greater variety of music styles that would also be able to be drop tuned with ease. We discussed different model options, constructions and specifications and ended up choosing the Rev II model, which had already proven its quality.
With great focus on its appearance we discussed the variances of wood available for the top. In the end, we decided on the extraordinary Stabilized Maple Burl top with its unique patterns and striations, making the bass unparalleled.

Technical specification:

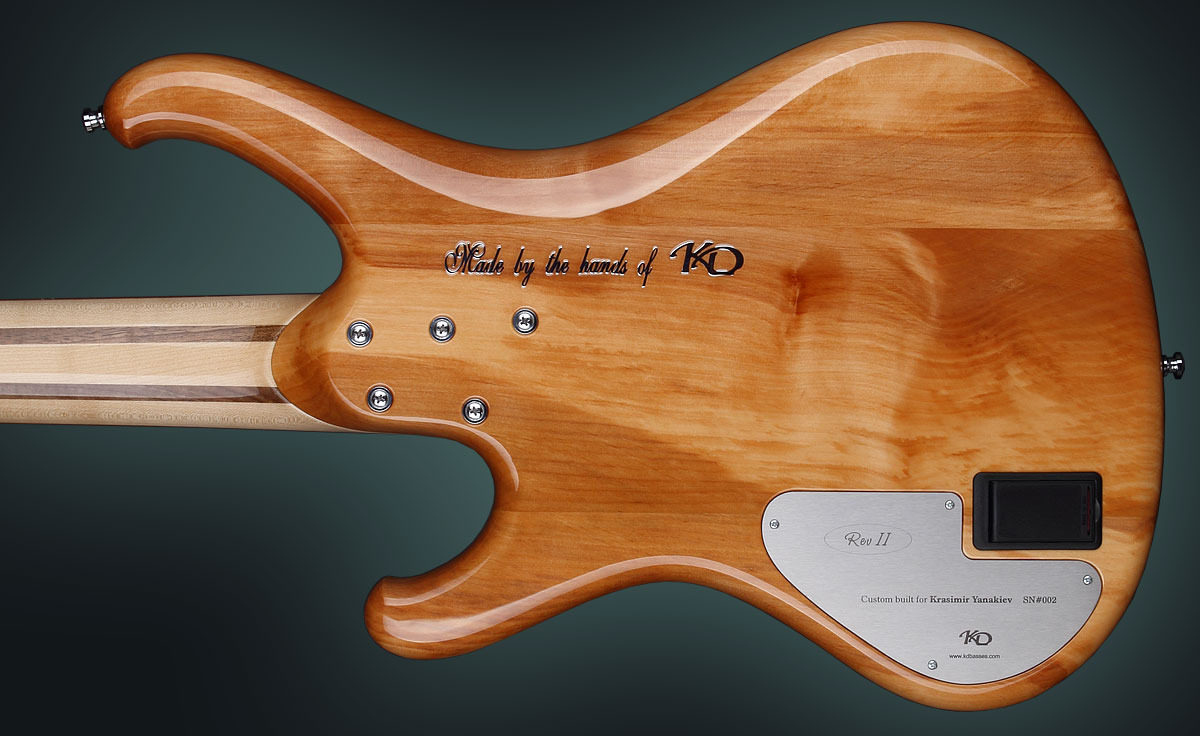

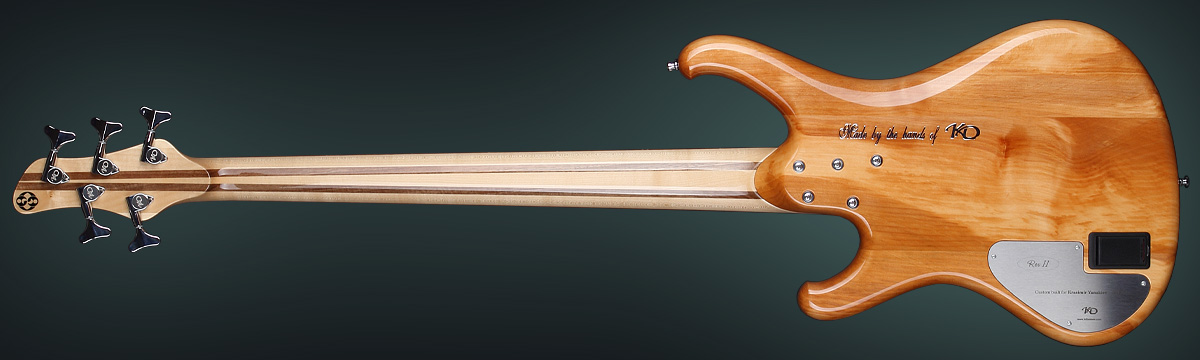

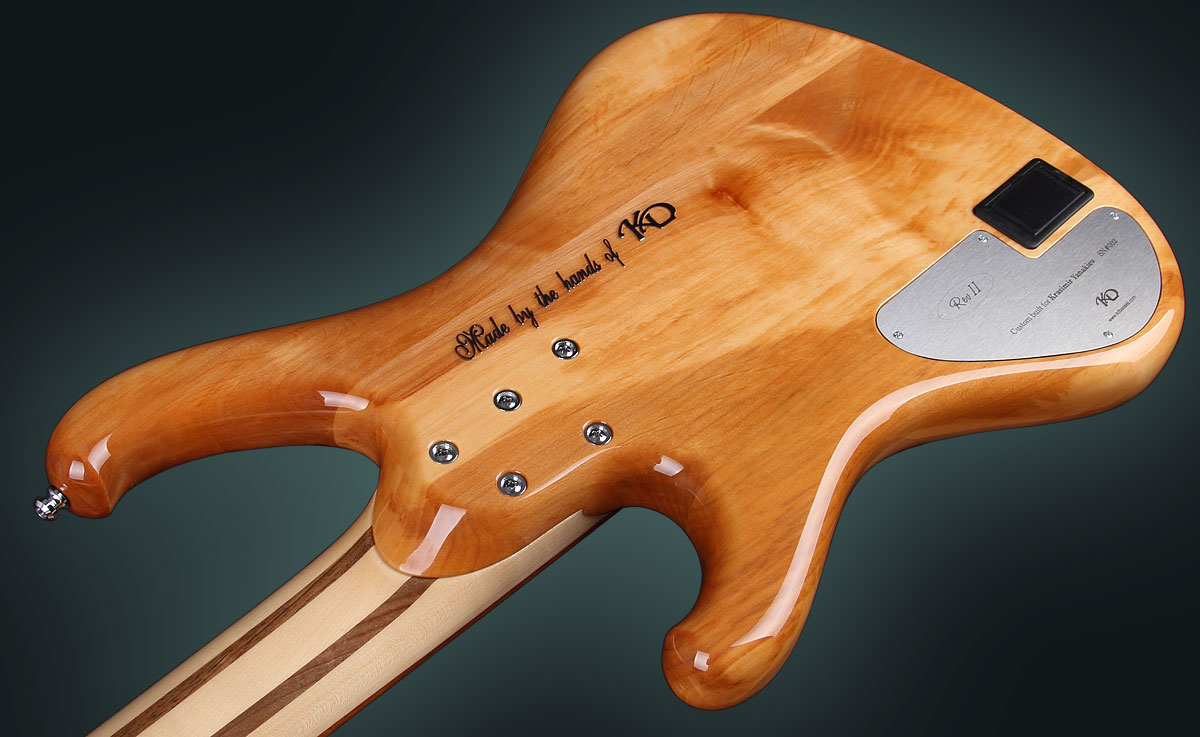

Body: Seasoned Bulgarian spotted Alder plus the phenomenal stabilized Maple burl top. Wenge veneer lamination in between.
Neck: CONE CORE neck construction, 3-pieces plain Balkan Maple plus two stripes Bulgarian Walnut.

  • Multiscale 34” first string 37” fifth string
  • Side position marks 2mm black dots
  • 20″ (508mm) fingerboard radius
  • 20mm (0.787″) thickness at 1-st fret
  • 22mm (0.866″) thickness at 12-th fret
  • 45mm (1.771″) nut width
  • 24 medium Jumbo frets
  • The nut is made of Indian water Bull horn – cone shape

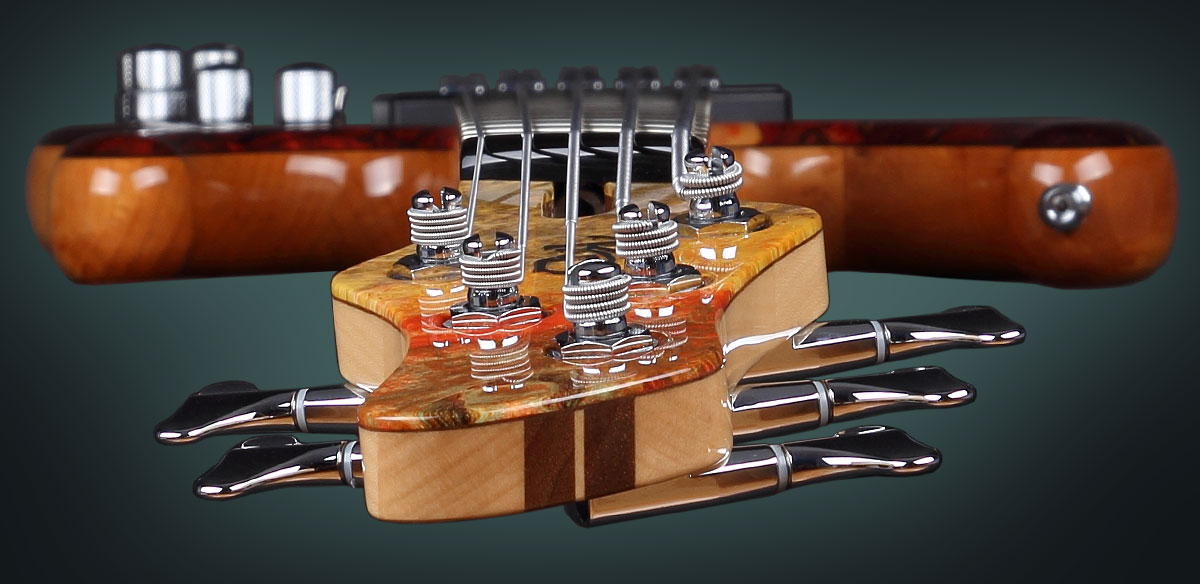

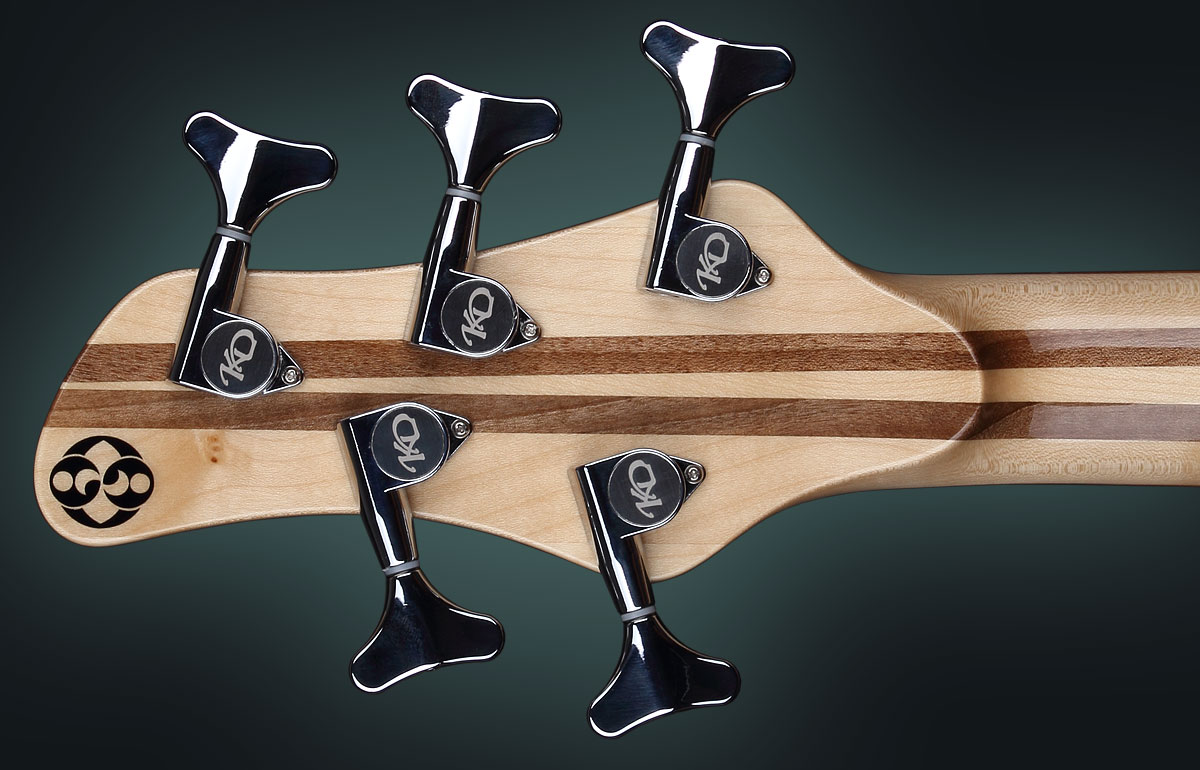

  • Matching headstock – multi-color stabilized Maple burl

Fingerboard: Rhodesian Teak
Construction: Bolt-on
Tuners: KD
Bridge: Individual 17,5mm (0.688″) spacing
Pickups: Bartolini

  • 90P46CBC – T – Bridge
  • 90P46CBC – B – Neck

Finish: High Gloss Polyester
Strap pins: Schaller S-lock
Hardware: Chrome
Electronics, controls:

  1. VOLUME Push/Pull, Active/Passive
  2. BLEND
  3. BASS parametric
  4. MID parametric
  5. TREBLE parametric

NOLL TSM 3P onboard preamp 9V
Weight: 4.850kg (10.6lbs)

Stainless steel electronic box cover plate.

Copper shielding protects the entire electronic box and pickups.

Send me an e-mail via the Contact form to check the availability of the present custom electric bass model or to get more information about placing an order!

Custom options and price are available upon request!

Click on the images to enlarge!

On our Facebook page you can see the available rare wood materials. Click KDbasses to check them out.

The bass comes with:

Gigbag or HISCOX – KD hard case;
Certificate Of Authenticity;
Set of two KD cleaning towels:
